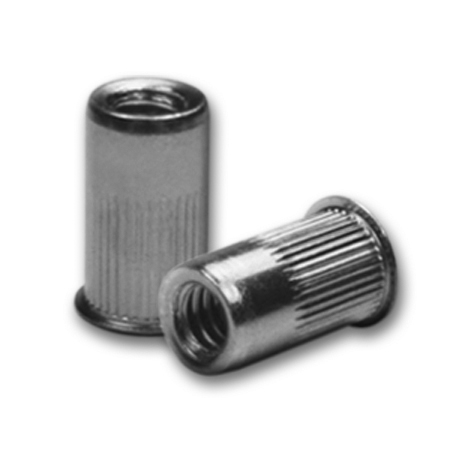

Small flange knurled body thin wall series rivet nuts - grip range can be affected by parent material and hole size. Sherex recommends trial installations to determine the proper grip range for the application. CAK style nuts are available closed end designs.



Material/Finish: Zinc Plated-Yellow Dichromatic ASTM B633 Fe/Zn8, Type II
Material/Finish: Available in Aluminum

* Special finish or material available upon request

Sherex rivet nuts are compatible with the following hardware: GRADE 2, GRADE 5, CLASS 8.8, and CLASS 9.8


Imperial Sizes

Part Number Thread Size Grip Range L ±.015 D (Max.) LB ±.015 Hole Size
(Min.-Max.) (inch) (inches) (inch) +.006/-.000 (inches)
CAK2-0632-080 6-32 UNC .020-.080 0.420 0.265 0.740 0.266
CAK2-0632-130 6-32 UNC .080-.130 0.470 0.265 0.740 0.266
CAK2-0832-080 8-32 UNC .020-.080 0.420 0.265 0.740 0.266
CAK2-0832-130 8-32 UNC .080-.130 0.470 0.265 0.740 0.266
CAK2-1024-130 10-24 UNC .020-.130 0.475 0.296 0.990 0.297
CAK2-1024-225 10-24 UNC .130-.225 0.585 0.296 0.990 0.297
CAK2-1032-130 10-32 UNF .020-.130 0.475 0.296 0.990 0.297
CAK2-1032-225 10-32 UNF .130-.225 0.585 0.296 0.990 0.297
CAK2-2520-165 1/4-20 UNC .027-.165 0.580 0.390 1.190 0.391
CAK2-2520-260 1/4-20 UNC .165-.260 0.680 0.390 1.190 0.391
CAK2-2528-165 1/4-28 UNF .027-.165 0.580 0.390 1.190 0.391
CAK2-2528-260 1/4-28 UNF .165-.260 0.680 0.390 1.190 0.391
CAK2-3118-150 5/16-18 UNC .027-.150 0.690 0.530 1.390 0.531
CAK2-3118-312 5/16-18 UNC .150-.312 0.805 0.530 1.390 0.531
CAK2-3124-150 5/16-24 UNF .027-.150 0.690 0.530 1.390 0.531
CAK2-3124-312 5/16-24 UNF .150-.312 0.805 0.530 1.390 0.531
CAK2-3716-150 3/8-16 UNC .027-.150 0.690 0.530 1.390 0.531
CAK2-3716-312 3/8-16 UNC .150-.312 0.805 0.530 1.390 0.531
CAK2-3724-150 3/8-24 UNF .027-.150 0.690 0.530 1.390 0.531
CAK2-3724-312 3/8-24 UNF .150-.312 0.805 0.530 1.390 0.531

Metric Sizes

Part Number Thread Size Grip Range L ±.38 LB ±.38 Hole Size
(Min.-Max.) (mm) (mm) +.15/-.000 (mm)
CAK2-470-2.0 M4x0.7 ISO 0.50-2.00 10.67 18.80 6.75
CAK2-470-3.3 M4x0.7 ISO 2.00-3.30 11.94 18.80 6.75
CAK2-580-3.3 M5x0.8 ISO 0.50-3.30 12.07 25.15 7.60
CAK2-580-5.7 M5x0.8 ISO 3.30-5.70 14.86 25.15 7.60
CAK2-610-4.2 M6x1.0 ISO 0.70-4.20 14.73 30.23 10.00
CAK2-610-6.6 M6x1.0 ISO 4.20-6.60 17.27 30.23 10.00
CAK2-8125-3.8 M8x1.25 ISO 0.70-3.80 17.53 35.31 13.50
CAK2-8125-7.9 M8x1.25 ISO 3.80-7.90 20.45 35.31 13.50
CAK2-1015-3.8 M10x1.5 ISO 0.70-3.80 17.53 35.31 13.50
CAK2-1015-7.9 M10x1.5 ISO 3.80-7.90 20.45 35.31 13.50
