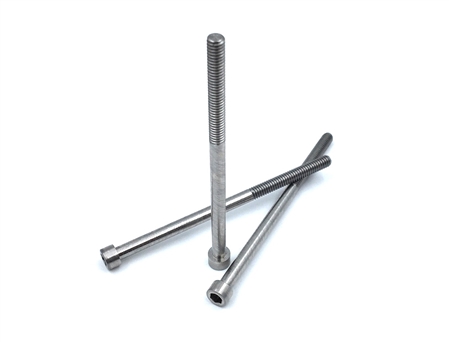

These are custom long 316 stainless steel screws at 8-32 X 3 in dimensions, manufactured domestically at a small batch of approximately 40 pieces. The parts were completed in a relatively quick turnaround time-frame of approximately 4 weeks from order, especially considering the holiday timing. To allow for the small quantity and speed the hex socket drive was broached instead of using a cold headed approach. The partial thread was also cut rather than rolled to allow for the short production run option.

Once you are in the 1,000s of pieces we would switch the produciton method to cold heading and rolling the thread for these parts to significantly decrease the cost per piece. The lead time would be closer to 8-10 weeks in that scenario however.
