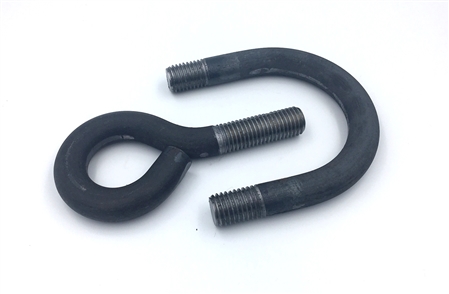

These custom bent eye bolts were produced together with matching large round u-bolts in A36 material.  3/4-10 thread was incorporated on both parts and 6 eye bolts were produced together with 21 u-bolts, a relatively small production run.  Parts were produced within 4 days of order confirmation but could have been done faster with an expedited rush order and fee if necessary.  The diameter of the eye was set to 1-1/2" and the thread length was set to 2-1/2".  We were approx 1/4" shy of the thread length requested however as going beyond that would encroach onto the bending material.  The round u-bolts were made to 3-1/2" between the legs and 4" for the inside length.  1" of 3/4-10 thread was incorporated on each leg.

Our relationships with production facilities all over the United States and abroad based on decades of custom hardware & fastener production history, in combination with the flexibility of blanket purchase arrangements, allows us to fully cater to the customer’s hardware specification and procurement requirements.
